Aerogel Rock Wool Insulation Panel | Delivering High Performance

WedGelRock™ is an advanced Aerogel Rockwool Insulation Panel engineered by Wedge Insulation combining high-performance Aerogel layers with mineral wool core to deliver superior heat loss reduction in extreme industrial applications up to 650°C.

Successfully deployed in Coal Tar Pitch transport systems operating at ~300°C, WedGelRock™ demonstrated measurable heat loss reduction, lower surface temperature, and enhanced operational safety.

Aerogel Rock Wool Insulation Panel | WedGelRock™

WedGelRock™ – Engineered Aerogel Rock Wool Insulation Panel Delivering Maximum Thermal Performance with Minimum Thickness.

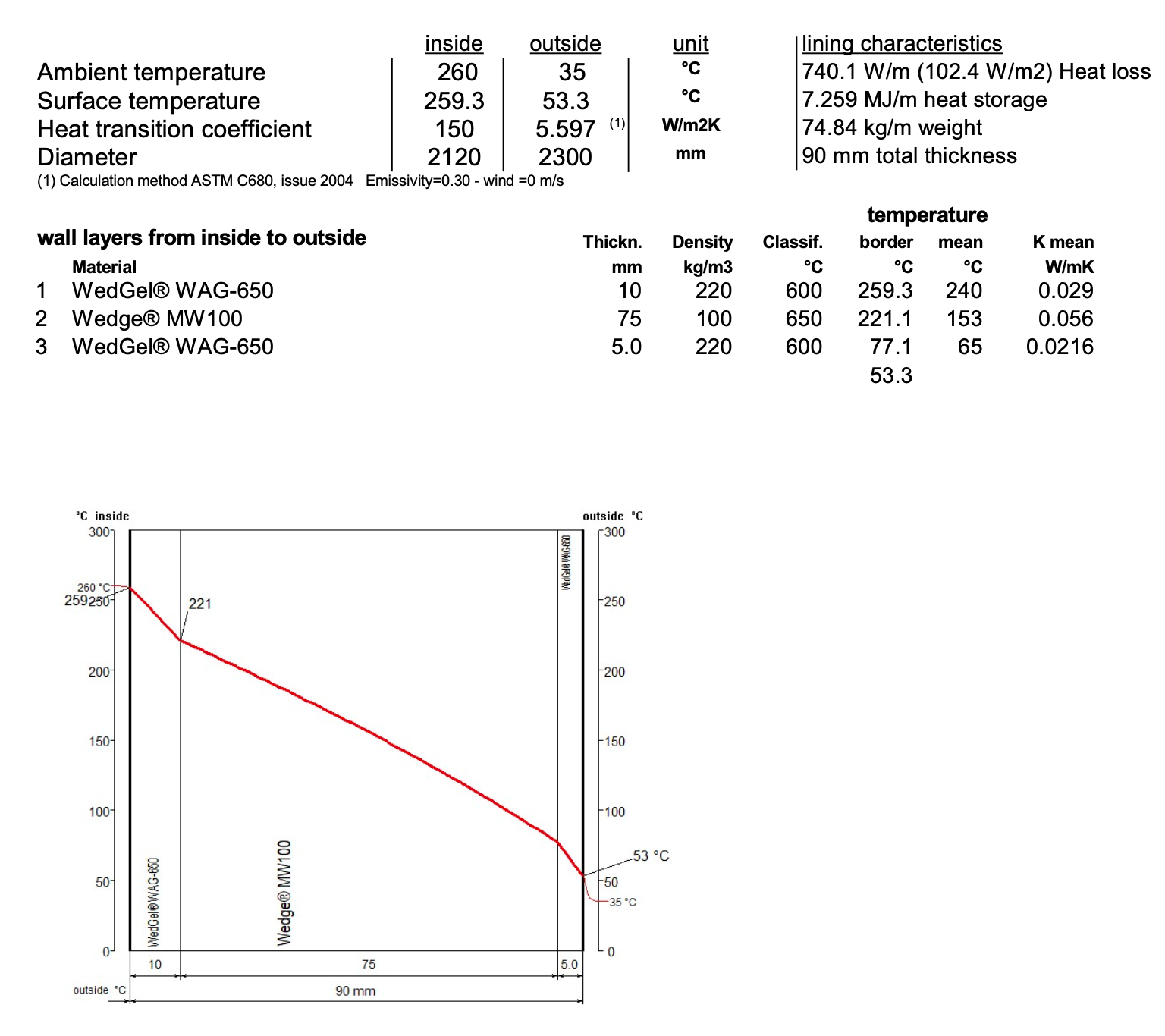

Aerogel Rock Wool Insulation Panel Thermal Performance Results

External Surface Temperature: ~53°C
Ambient Temperature: 35°C
Heat Loss: 740.1 W/m
Heat Storage: 7.259 MJ/m
System Weight: 74.84 kg/m

Mean Thermal Conductivity:

Aerogel Layer: 0.0216 – 0.029 W/mK
Mineral Wool Core: 0.056 W/mK

Key Benefits (Conversion Section)

✔ 30–40% Heat Loss Reduction vs Conventional Mineral Wool System
✔ Lower External Surface Temperature → Improved Safety
✔ Reduced Reheating Energy Requirement
✔ Reduced Total Insulation Thickness
✔ Lightweight Engineered Composite System
✔ Higher Thermal Resistance per mm Thickness
✔ Suitable for Tanks, Pipes, Vessels & Transport Lines

Industries Served

Coal Tar Pitch Transport
Petrochemical
Bitumen Handling
High Temperature Storage Tanks
Process Pipelines
Refineries
Steel Plants

Thickness of Aerogel Rock Wool Insulation Panel Options:
60 mm / 75 mm / 90 mm / Custom

Max Service Temperature:
600°C / 650°C

Core Density:
100 kg/m³

Facing Options:
Aluminium Foil / SS Wire Mesh / Plain

Form:
Panel / Custom Fabricated
