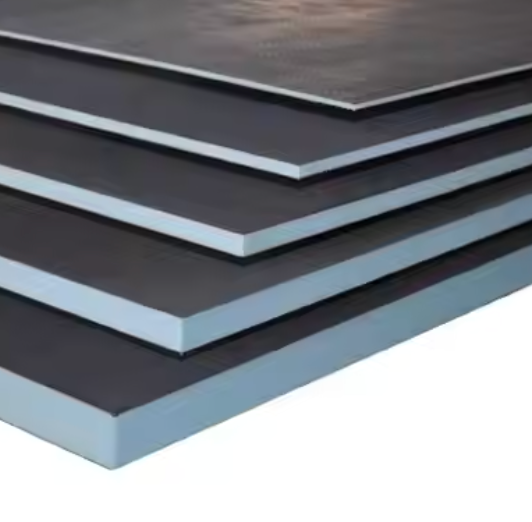

Cement Coated XPS Extruded Polystyrene Boards | WI-INS-068

Cement Coated XPS Extruded Polystyrene Boards – Extruded polystyrene (xps) rigid insulation board engineered by Wedge Insulation for demanding thermal, fire protection, and energy efficiency requirements.

Cement Coated XPS Extruded Polystyrene Boards Technical Specifications

• Thermal Conductivity: 0.029 – 0.038 W/mK

• Compressive Strength: 200 – 700 kPa

• Water Absorption: < 0.3% by volume

• Density: 25 – 45 kg/m³

• Working Temperature: -50°C to +75°C

Key Benefits

✔ Closed-cell structure — virtually zero water absorption
✔ High compressive strength for under-slab and inverted roof
✔ Consistent thermal performance maintained over full service life
✔ Lightweight and easy to handle on site
✔ Compatible with waterproofing systems and concrete
✔ Available with cement or polymer facing for tile-backer applications

Industries Served

• Flat Roofing and Inverted Roofs

• Ground-Bearing Slabs

• Basement and Below-Ground Insulation

• Cold Store Flooring

• External Wall Insulation Systems

• Civil and Infrastructure Projects

Compressive Strength:
200 / 300 / 500 / 700 kPa grades

Thickness Options:
20 – 200 mm

Standard Size:
1250 × 600 mm / 2500 × 600 mm

Supply:
Global supply — India, UK, Europe, Middle East, USA, Asia
