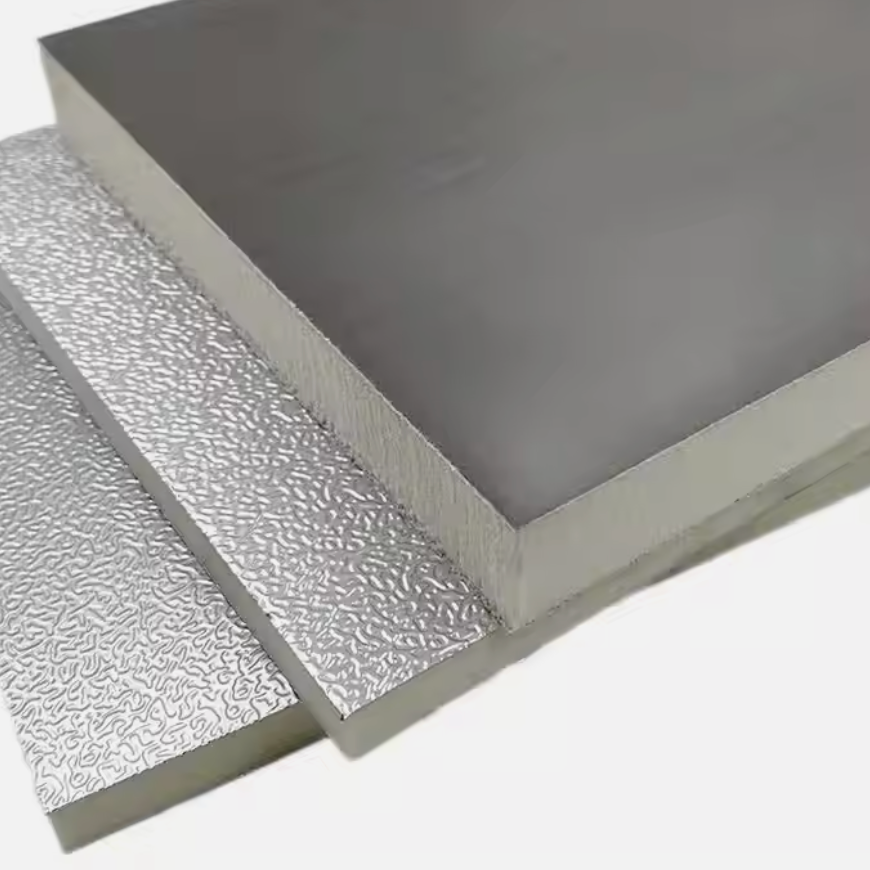

PUF Insulation Polyurethane Foam Board | WI-INS-097

PUF Insulation Polyurethane Foam Board – Polyurethane foam (puf) insulated sandwich panel engineered by Wedge Insulation for demanding thermal, fire protection, and energy efficiency requirements.

PUF Insulation Polyurethane Foam Board Technical Specifications

• Thermal Conductivity: 0.022 – 0.024 W/mK

• Core Density: 38 – 48 kg/m³

• Panel Thickness: 50 mm – 200 mm

• Facing: Pre-painted galvanised steel / Stainless steel / Aluminium

• Operating Temperature: -40°C to +100°C

Key Benefits

✔ Factory-engineered for consistent thickness and thermal performance
✔ Highest R-value per mm of any insulated panel system
✔ Structural self-supporting panel — reduces secondary steel framing
✔ Fast site installation with interlocking panel system
✔ Available with smooth or profiled steel facings
✔ Suitable for cold storage, clean rooms, and industrial buildings

Industries Served

• Cold Storage and Cold Chain

• Food Processing and Pharma

• Industrial Buildings and Warehouses

• Clean Rooms

• Prefabricated Buildings

• Refrigerated Transport

Panel Width:
1000 mm / 1150 mm / 1200 mm

Panel Length:
Up to 12,000 mm

Thickness Options:
50 / 75 / 100 / 125 / 150 / 200 mm

Supply:
Global supply — India, UK, Europe, Middle East, USA, Asia
