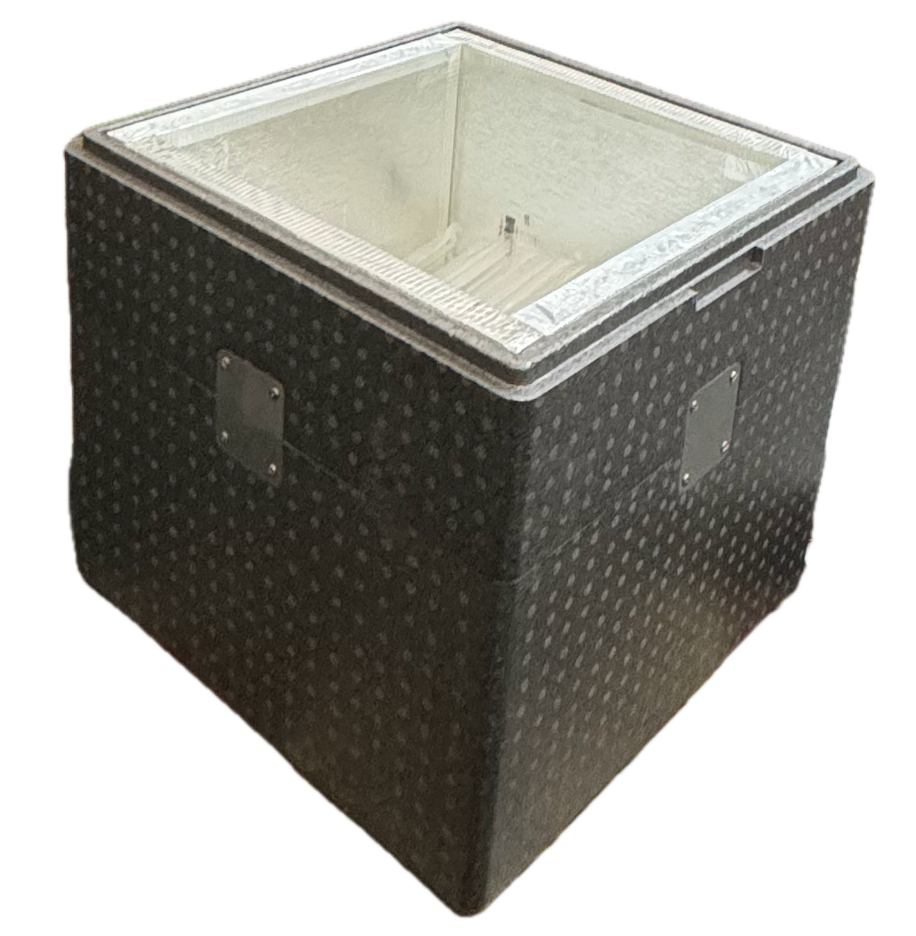

VIP Vacuum Insulated Panel Cold Box | WI-INS-242

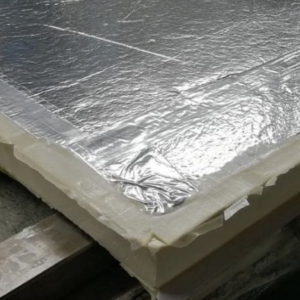

VIP Vacuum Insulated Panel Cold Box – Vacuum insulated panel (vip) ultra-low conductivity thermal insulation engineered by Wedge Insulation for demanding thermal, fire protection, and energy efficiency requirements.

VIP Vacuum Insulated Panel Cold Box Technical Specifications

• Thermal Conductivity: 0.003 – 0.007 W/mK centre-of-panel

• Core Material: Fumed silica / Aerogel / Glass fibre

• Panel Thickness: 10 mm – 40 mm

• Service Life: 20–25 years

• Operating Temperature: -70°C to +80°C

Key Benefits

✔ Highest thermal performance of any insulation — up to 10× conventional
✔ Ultra-thin profile — maximises usable interior space
✔ Suitable for cold chain, cryogenics, and precision temperature control
✔ Rigid and structural — no additional support required
✔ Long service life with minimal performance degradation

Industries Served

• Cold Chain and Refrigerated Logistics

• Pharmaceutical and Medical

• LNG and Cryogenic Storage

• EV Battery Thermal Management

• Aerospace

• Data Centers

Core Options:
Fumed Silica / Aerogel / Glass Fibre

Thickness Range:
10 – 40 mm

Custom Sizes:
Available to project specification

Supply:
Global supply — India, UK, Europe, Middle East, USA, Asia
