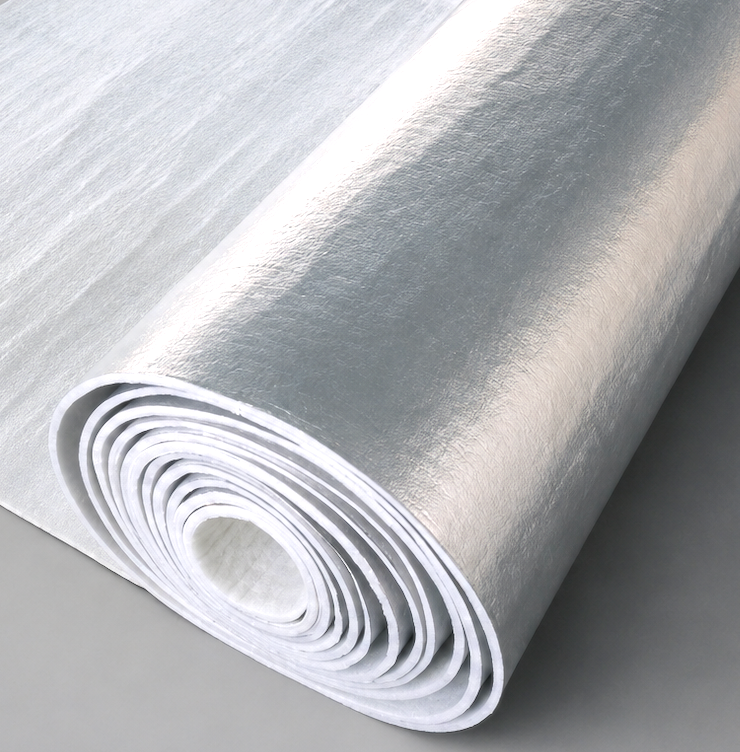

WedGel 125A Aerogel Blanket for LNG Cryogenic Tanks — Silica Cloth Faced | WI-AGL-WAG125A
WedGel 125A Aerogel Blanket for LNG Cryogenic Tanks — Silica Cloth Faced — Nanoporous silica aerogel insulation engineered by Wedge Insulation for demanding thermal, fire protection, and energy efficiency requirements. Grade designation: WedGel 125A.
WedGel 125A Technical Specifications
- Thermal Conductivity: 0.018 W/m·K @ 25°C
- Service Temperature: -200°C to +125°C
- Density: 160 ± 30 kg/m³
- Hydrophobicity: >99% water repellency (GB/T 10299)
- Product Form: Flexible blanket with silica cloth covering
- Thickness Range: 5 mm – 20 mm, custom available
- Compliance: ASTM C1728, ASTM C177, ASTM C795, ASTM C1617, IEC 60695-11-5, RoHS, REACH
Key Benefits
✔ Among the lowest thermal conductivities available — up to 3× better than conventional mineral wool
✔ Ultra-thin profile reduces insulation thickness by 50–70%
✔ Hydrophobic — maintains performance in wet or humid environments
✔ Lightweight — minimises structural and system load
✔ Non-combustible — Class A fire rating
✔ Manufactured to ASTM C1728 with full Material Test Certificate (MTC) and traceability
✔ Global supply capability with India stock for short lead times
Industries Served
- LNG Terminals & Carriers
- Cryogenic Storage Tanks
- Industrial Gas Plants
- Pharmaceutical Cold Process
- Aerospace Cryogenics
Best Use
LNG storage tanks, cryogenic vessels, ethylene cold service
Product Forms:
Flexible blanket with silica cloth covering
Service Temperature:
-200°C to +125°C
Thickness Options:
5 mm – 20 mm, custom available
Supply:
Global supply — India (Faridabad & Hardoi stock), UK, Europe, Middle East, USA, South-East Asia. Standard lead time: ex-stock 24–48 hrs (Faridabad); project orders 10–15 days FOB.
Positioning:
High-performance cryogenic blanket for industrial LNG and cold-service applications.
