Mica insulation from Wedge Industries Limited — the WedgeMICA range of muscovite, phlogopite and synthetic mica boards, sheets, rolls, tubes, gaskets and machined parts for high-voltage, high-temperature electrical insulation. Rated up to 1100 °C, dielectric strength up to 23.6 kV/mm, arc resistance up to 500 s and UL 94 V-0, from switchgear to induction and arc furnaces.
Rigid mica board / mica sheetMica heater platesFlexible mica sheetMica roll for induction furnaceMica tubes & bushesMica gasket sheetNatural ruby muscovite micaMachined mica parts
Download the WedgeMICA catalogue (PDF)Get Price
Shop mica insulation products
All WedgeMICA families plus mica paper, mica tapes, gauge glass mica and EV mica parts — price on request, TDS with every quotation.
-
EV Battery Thermal Pads
EV Battery Mica Barrier Plate — Thermal Runaway Protection
📩 Contact for Price -
Electrical Insulation
Rigid Mica Board (Mica Sheet) — WedgeMICA 550 / 800 / 1100 °C, UL 94 V-0
📩 Contact for Price
Mica insulation products and grades
| Product family | Grades | Form | Size / thickness |
|---|---|---|---|
| Rigid mica boards | WMB-M550 · WMB-P800 · WMB-S1100 | Rigid sheet, machined parts | 1000×1200 / 1000×2400 mm · 1–50 mm |
| Heater mica plates | WMH-M550 · WMH-P800 · WMH-S1100 | Thin rigid sheet, stamped parts | 1000×600 / 1000×1200 / 1000×2400 mm · 0.15–1.5 mm |

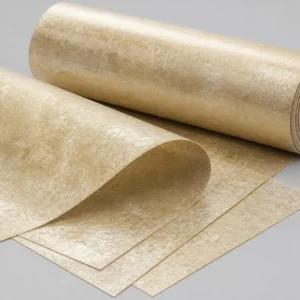

| Flexible mica sheets | WMF-M500 · WMF-P600 | Flexible sheet, stamped parts | 1000×600 / 1000×1200 mm · 0.15–5 mm |
| Mica rolls | WMR-GMG · GMP · GM · PM · CM | Backed mica paper roll / cut sheet | 0.2–5 mm |
| Mica tubes & bushes | WMT-M550 · WMT-P800 · WMT-S1100 · WMT-N130 | Tube, bush, collar bush | ID from 8 mm · length up to 1000 mm |
| Mica gasket sheet | WMG-P · WMG-PSS | Sheet, punched gaskets | Up to 3 mm |

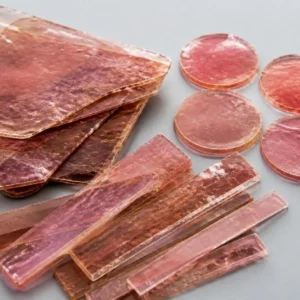

| Natural muscovite mica | WMN-BLK · STR · DSC · FAB · GGS · TRW | Blocks, splittings, strips, discs, washers, shields | Cut to size / drawing |

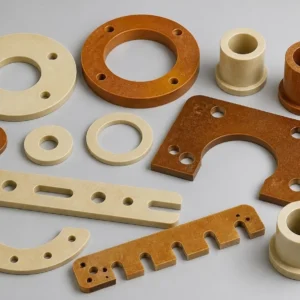

| Machined mica parts | WMX-[grade]-[drawing no.] | CNC parts to drawing | To drawing |

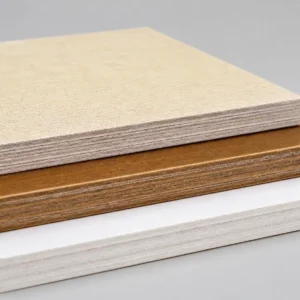

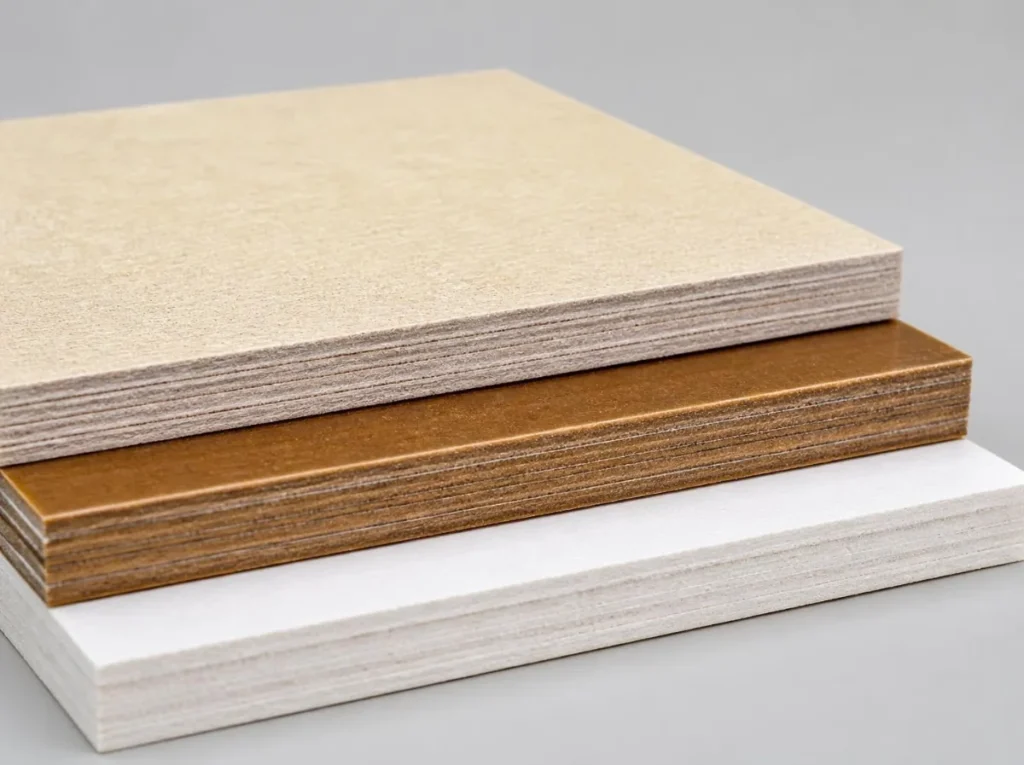

Muscovite, phlogopite or synthetic mica?
| Property | Muscovite (M) | Phlogopite (P) | Synthetic (S) |
|---|---|---|---|
| Colour | Cream / ruby | Amber-brown | White |
| Temperature index (rigid board) | 550 °C | 800 °C | 1100 °C |
| Dielectric strength, min. (rigid board) | 19.7 kV/mm | 21.7 kV/mm | 23.6 kV/mm |
| Arc resistance, min. (rigid board) | 420 s | 420 s | 500 s |
| Best for | Switchgear, busbar, arc barriers | Induction furnace, EAF / LF, smelting | Most severe heat and arc duty |
Rigid board values from TDS WIL-TDS-MICA-001 (typical values). All rigid grades are UL 94 V-0.

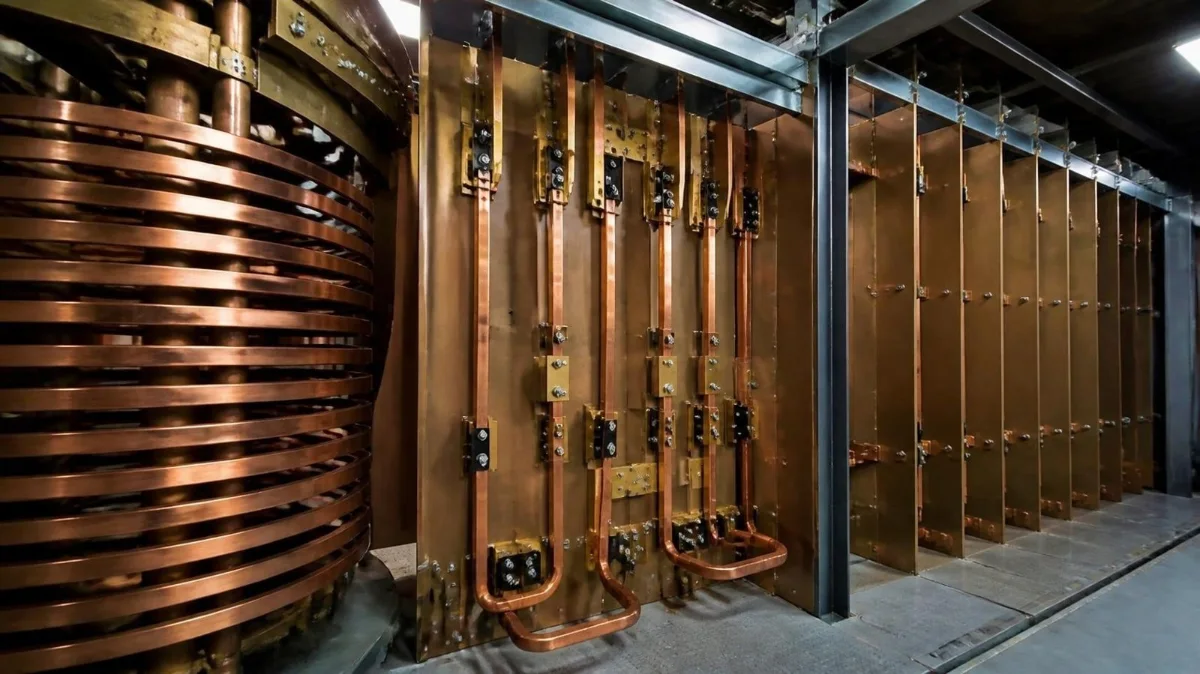

Mica insulation by application
| Application | Recommended WedgeMICA product |
|---|---|
| Switchgear arc chutes, phase barriers, busbar supports | Rigid board WMB-M550 / WMB-S1100 |
| Induction furnace — coil supports, spacers, top & bottom panels | Rigid board WMB-P800, tubes WMT-P800 |
| Induction furnace — slip plane between crucible and coil | Mica rolls WMR-GMG / GM / CM |
| EAF / LF — electrode clamp, mast arm, roof-lift, bus tube insulation | Rigid board WMB-P800, machined parts |
| Smelting pots and cells — busbar, anode clamp, cradle insulation | Rigid board WMB-P800 / WMB-S1100 |
| Heating elements and domestic appliances | Heater plates WMH-M550 / WMH-P800 / WMH-S1100 |
| Motors, transformers, coils, circuit breakers | Flexible sheets WMF-M500 / WMF-P600, tubes WMT-M550 |
| High-temperature flanges, burners, turbines | Gasket sheet WMG-P / WMG-PSS |
| Boiler gauge glasses, sight windows | Natural mica WMN-GGS shields |
Mica insulation price
WedgeMICA products are quoted on request by mica type, thickness, size or drawing and quantity, in ₹ INR and $ USD. Order by SKU — family-grade-thickness (mm)-size, with size codes 1006 = 1000×600, 1012 = 1000×1200, 1024 = 1000×2400 mm and CUT = cut to drawing. Example: WMB-P800-10-1012 = phlogopite rigid board, 10 mm, 1000 × 1200 mm. A Technical Data Sheet comes with every quotation, a Material Test Certificate with every delivery, and samples are available for approval before bulk orders.
Mica insulation FAQs
What is mica insulation?
Mica insulation is electrical and thermal insulation made from mica, a naturally layered silicate mineral with very high dielectric strength, high arc resistance and stability far above the limit of organic laminates. WedgeMICA products convert muscovite, phlogopite and synthetic mica into boards, sheets, rolls, tubes, gaskets and machined parts, bonded with silicone resin for heat duty.
What temperature can mica insulation withstand?
WedgeMICA grades are rated by continuous temperature index: muscovite to 550 °C, phlogopite to 800 °C and synthetic mica to 1100 °C for rigid boards, heater plates and tubes. Flexible mica sheets are rated to 500 °C (muscovite) and 600 °C (phlogopite).
What is the difference between muscovite and phlogopite mica?
Muscovite (cream or ruby) has the best electrical and mechanical strength and the lowest dielectric loss, and is first choice for switchgear, busbar and arc-barrier parts up to 550 °C. Phlogopite (amber-brown) has higher heat resistance, is softer to machine, and is the standard for induction furnace, EAF / LF and smelting insulation up to 800 °C.
Which mica insulation is used in induction furnaces?
Induction furnaces use WMB-P800 phlogopite rigid board and WMT-P800 tubes for coil supports, spacers and top and bottom panels, and WMR-GMG, WMR-GM or WMR-CM mica rolls as the slip plane between crucible and coil.
How do I order mica insulation from Wedge?
Order by Wedge SKU in the form family-grade-thickness-size, for example WMB-P800-10-1012 for a 10 mm phlogopite rigid board of 1000 × 1200 mm, or send a DXF, DWG or PDF drawing for machined parts. A Technical Data Sheet comes with every quotation and a Material Test Certificate with every delivery; MOQ and lead time are confirmed with each quotation. Call or WhatsApp +91 97175 06848.
Read the guide: Mica insulation — types, temperature ratings, uses and how to specify it (2027 guide) and the electrical insulation materials and products guide.
Related: high-temperature insulation · microporous insulation · wet ground mica powder · electrical insulation
Request a quotation for mica insulation
Send the Wedge SKU or grade, thickness, size or drawing, quantity and any MTC or dielectric test requirement for a firm price in ₹ INR and $ USD.
