Overview

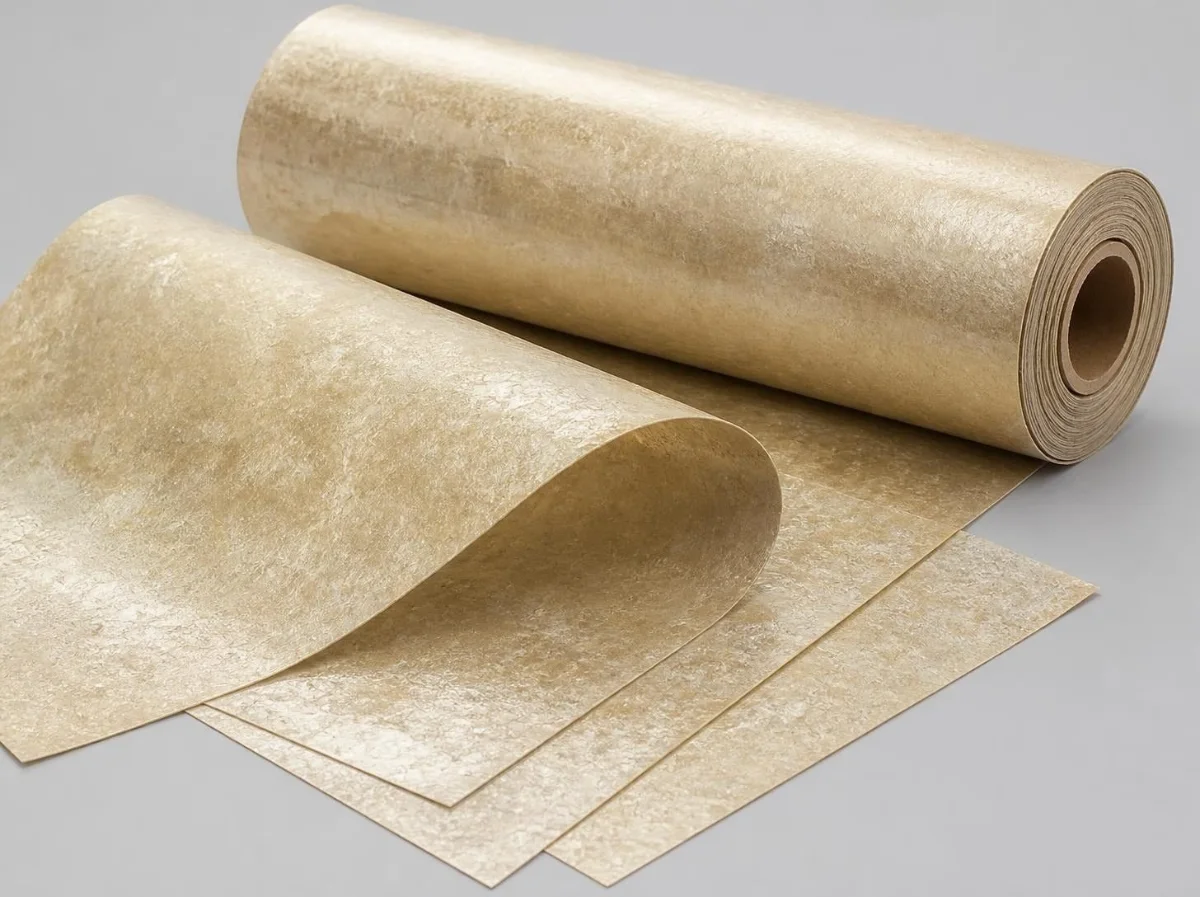

A mica heater plate is a thin, rigid mica sheet that carries and insulates the resistance wire or ribbon in a heating element. WedgeMICA heater plates are pressed from the same mica papers as the WedgeMICA rigid boards, bonded with silicone resin, in thicknesses from 0.15 mm to 1.5 mm. They keep their electrical insulation at element temperatures far above the limit of organic laminates.
Three grades match the element temperature: muscovite WMH-M550 below 550 °C, phlogopite WMH-P800 below 800 °C and synthetic WMH-S1100 below 1100 °C. Plates are supplied as full sheets or stamped into element supports, frames and wound-element cards.
WedgeMICA mica insulation catalogue 2026 (PDF, 6 pages, 1.3 MB) — Mica heater plate grades, technical data, sizes and ordering codes for the full range of mica boards, sheets, rolls, tubes, gaskets and machined parts.
Mica heater plate specifications
| Grade | Mica | Temp. rating | Sizes | Thickness |
|---|---|---|---|---|
| WMH-M550 | Muscovite | < 550 °C | 1000 × 600 · 1000 × 1200 · 1000 × 2400 mm | 0.15–1.5 mm |
| WMH-P800 | Phlogopite | < 800 °C | 1000 × 600 · 1000 × 1200 · 1000 × 2400 mm | 0.15–1.5 mm |
| WMH-S1100 | Synthetic | < 1100 °C | 1000 × 600 · 1000 × 1200 · 1000 × 2400 mm | 0.15–1.5 mm |
Composition (MSDS): mica ≥ 88 % with ≤ 12 % cured silicone resin binder; not flammable, UL 94 V-0 laminate. Colour: cream (muscovite), brown (phlogopite), white (synthetic).
Which mica type?
| Mica type | Colour | Temperature class | Choose it for |
|---|---|---|---|
| Muscovite (M) | Cream / ruby | to 550 °C | Best electrical and mechanical strength, lowest dielectric loss — switchgear, busbar and arc-barrier parts |
| Phlogopite (P) | Amber-brown | to 800 °C | Higher heat resistance, softer to machine — induction furnace, EAF / LF and smelting insulation |
| Synthetic (S) | White | to 1100 °C | Highest temperature index, dielectric strength and arc resistance — most severe heat and arc duty |
Mica heater plate price
WedgeMICA heater mica plates are quoted on request. The price depends on the mica type (muscovite, phlogopite or synthetic), thickness, size or drawing, quantity and any test requirement, so every enquiry gets a firm quotation in ₹ INR and $ USD with the technical data sheet attached. MOQ and lead time are confirmed with each quotation.
Quote the Wedge SKU to speed things up: family-grade-thickness (mm)-size. Size codes: 1006 = 1000 × 600 mm, 1012 = 1000 × 1200 mm, 1024 = 1000 × 2400 mm, CUT = cut to drawing.
Applications
- Domestic appliances — irons, hair dryers, toasters, kettles and ovens.
- Industrial heaters — air heaters, wound heater elements and cylindrical resistance heaters.
- Induction (IF) furnaces — thin insulation layers where a rigid plate is needed.

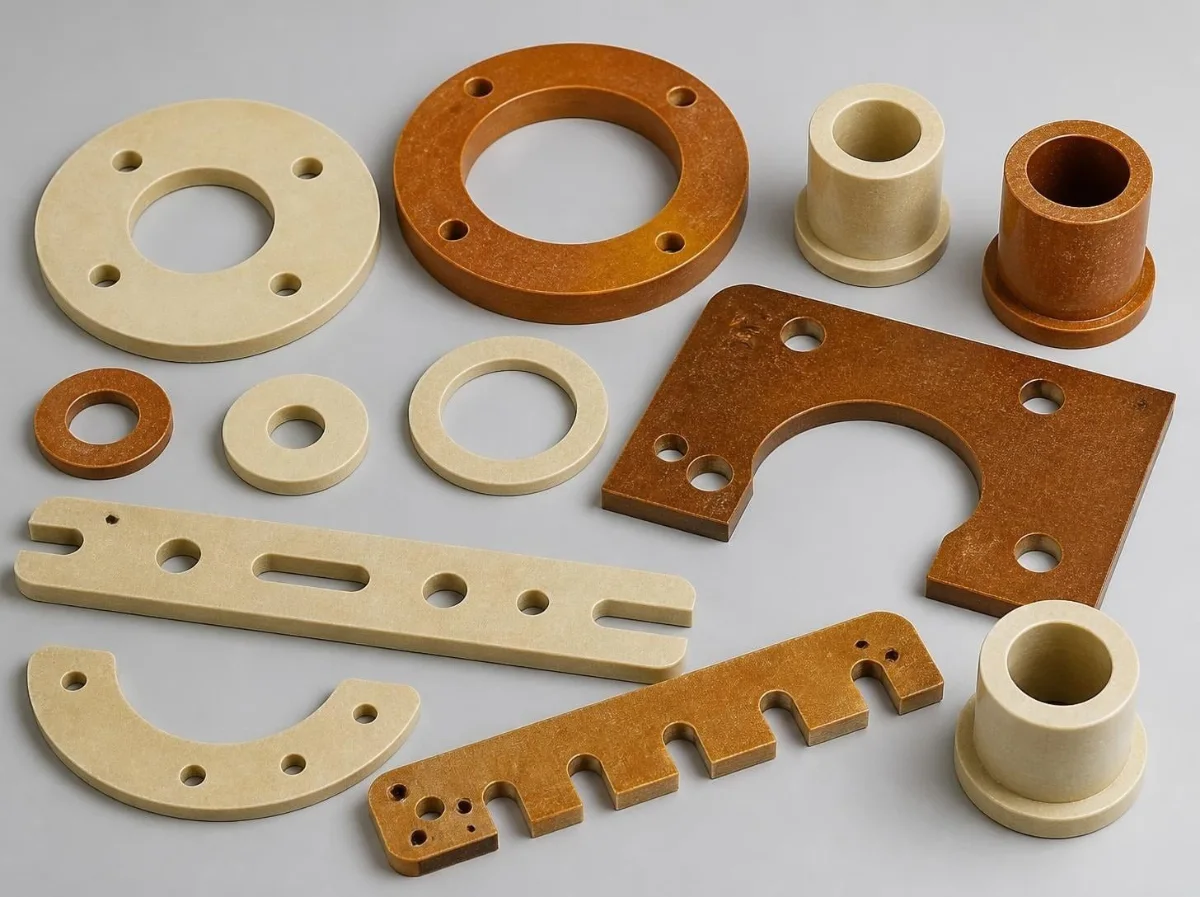

- Stamped heater parts — element cards, supports and gear-wheel parts made to drawing.
Handling and installation
- Handle sheets with gloves to avoid edge cuts; lift large sheets with support to prevent bending or cracking.
- Stamp or cut with sharp tools; collect dust with local exhaust and avoid dry compressed-air cleaning.
- Ventilate during the first heat-up of a new element above about 300 °C, when a little binder may burn off as light smoke.
- Do not run a plate above the rated continuous temperature of its grade.
Why buy mica insulation from Wedge Industries Limited
- One source for the whole WedgeMICA range — rigid boards, heater plates, flexible sheets, rolls, tubes, gaskets, natural muscovite mica and machined parts — in muscovite, phlogopite and synthetic mica.
- Technical Data Sheet with every quotation and a Material Test Certificate with batch test values on every delivery.
- Sample pieces of board, sheet and natural mica available for evaluation and approval before bulk orders.
- In-house CNC fabrication: parts cut, drilled, milled, turned and threaded to your DXF / DWG / PDF drawing, counted and labelled by drawing number.
- Export packing — sheets packed flat and interleaved on wooden pallets or in wooden cases — for customers in 45+ countries across the Gulf, Europe, Africa and South East Asia.
- Office in Gurugram (Galleria Tower, DLF Phase 4) with group companies in the United Kingdom and Hong Kong for export documentation.
Frequently asked questions
What is a mica heater plate?
A mica heater plate is a thin rigid mica sheet, 0.15 to 1.5 mm thick, that supports and insulates the resistance wire in a heating element. WedgeMICA heater plates are made of mica paper bonded with silicone resin and are rated to 550, 800 or 1100 °C depending on grade.
Which mica grade should I use for a heating element?
Use muscovite WMH-M550 for elements running below 550 °C, such as irons, toasters and kettles. Use phlogopite WMH-P800 up to 800 °C for air heaters and industrial elements, and synthetic WMH-S1100 up to 1100 °C for the most severe heat duty.
What sizes are mica heater plates supplied in?
Standard sheets are 1000 × 600 mm, 1000 × 1200 mm and 1000 × 2400 mm in thicknesses from 0.15 mm to 1.5 mm. Plates can also be stamped into element cards, supports and frames to your drawing.
Is mica heater plate safe for appliances?
The WedgeMICA MSDS classifies the silicone-bonded mica laminate as not hazardous in the form supplied, and it is not flammable (UL 94 V-0). On first heating above about 300 °C a small amount of binder may give off light smoke, so ventilate during the first heat-up. It is not intended for food-contact use.
How do I get a price for mica heater plates?
Send the grade, thickness, sheet size or drawing and quantity through the Get Price button, WhatsApp or by calling +91 97175 06848. Wedge Industries Limited quotes in INR and USD with a technical data sheet; MOQ and lead time are confirmed with each quotation.
Related mica products
- Mica insulation — full WedgeMICA range, grades and selection guide
- Rigid mica board WMB (mica sheet 550 / 800 / 1100 °C)
- Flexible mica sheet WMF
- Mica roll for induction furnace WMR
- Mica tubes and bushes WMT
- Mica gasket sheet WMG
- Natural ruby muscovite mica WMN
- Machined mica parts to drawing WMX
- Corrugated mica plates
- Electrical insulation products
- High-temperature insulation
- Microporous insulation
Request a quotation for mica heater plates
Send the Wedge SKU or the grade, thickness, size or drawing, quantity and any MTC or dielectric test requirement. Wedge Industries Limited returns a technical data sheet, a sample on request and a firm price in ₹ INR and $ USD.
