Prefab Buildings & Modular Building Systems
Factory-built, steel-framed and fully insulated buildings from Wedge Industries Limited — engineered for a 30+ year service life and delivered in just 4–6 weeks. Homes, cabins, offices, labour shelters, cold storage and mini agri-warehouses.
Why Build Prefab?
Insulated prefab construction beats conventional brick-and-block on speed, cost, energy efficiency and durability. Every Wedge building is precision-made in the factory on a high-strength steel frame, clad in MgO and cement board with a PUF and stone-wool insulated core.
shell build vs. 8–12 months masonry
wall weight vs. 400–500 masonry
guaranteed service life
built-in insulation, low HVAC cost
Prefab vs. Conventional Masonry
| Aspect | Conventional Masonry | Wedge Prefab / Modular |
|---|---|---|
| Construction time | Several months to over a year | Weeks — under 1 month for the shell |
| Energy efficiency | Needs added insulation | Insulation built in (R10 envelope) |
| Wall thickness | 230–350 mm external walls | 120–150 mm Wedge panels |
| Seismic performance | Poor — brittle | Excellent — ductile steel frame |
| Maintenance | Regular upkeep | Much lower — stable modern materials |
Our Prefab Building Range
A complete range of factory-built structures for residential, commercial, industrial and agricultural use.

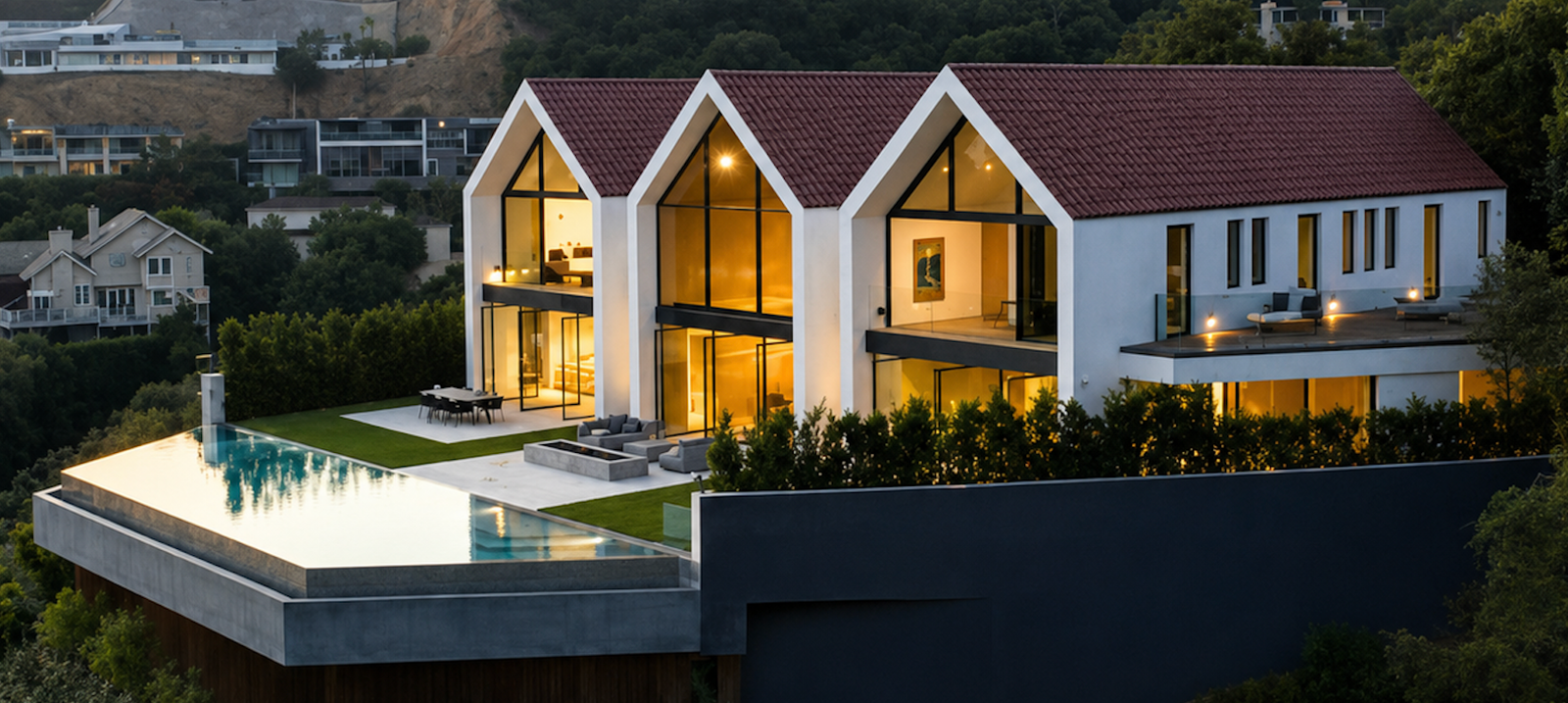

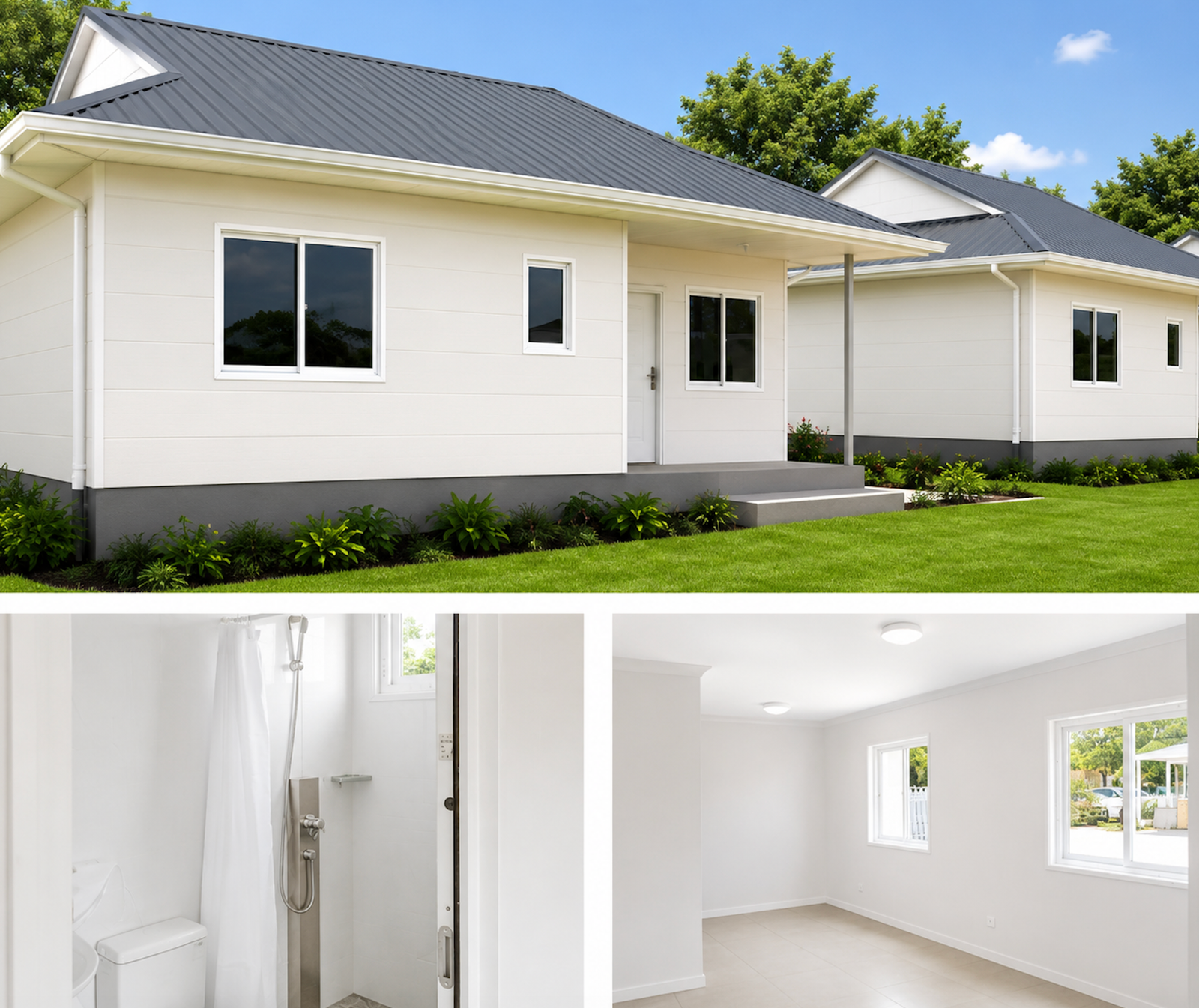

1. Prefab & Modular Homes
Single-storey and duplex homes engineered with LGSF and steel-hybrid technology, clad in MgO & UV cement board with PUF and rockwool insulation. From compact 1 BHK cottages and modern studios to 3–5 BHK bungalows and duplex villas. Fireproof, earthquake-resistant and 40–60% faster to build.

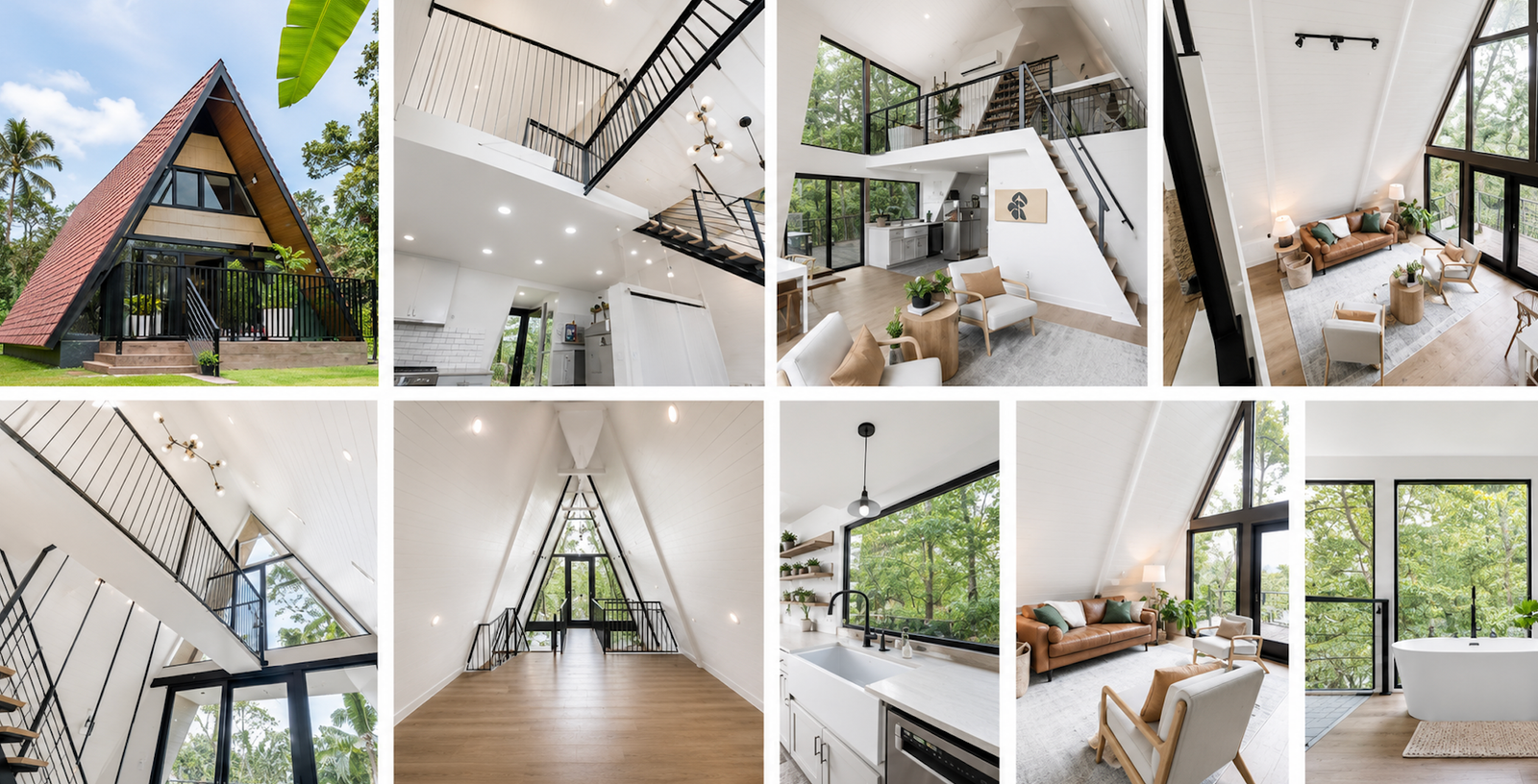

2. A-Frame Cabins
Triangular A-frame studios with a loft — ideal for resorts, hillside getaways and rental units. Steel portal frame, insulated envelope, deck-ready facades.
3. Farmhouses, Villas & Luxury Estates
From orchard and resort cabins to two-storey duplex farmhouses and estate-grade G+1 luxury villas with glazed facades, wide verandas and designer interiors — all on a 30+ year steel envelope.
4. Building on Wheels (Mobile Homes)
Tiny homes on wheels (THOW), cottages, farm houses and studios on a trailer chassis — relocatable, off-grid ready and minimalist. Also configurable as mobile shops, health centres, mini cold storage and mini warehouses.
5. Prefab Offices & Porta Cabins
Low-cost portable offices and cabins with an integrated PU-foam roof and wall system: never-leak, excellent insulation, fast installation and long lifespan. Manager rooms with glass walls, site offices and security cabins.
6. Labour Rooms & Shelters
Durable, low-cost accommodation for construction and industrial workforces — integrated PU-foam roof and wall, organised drainage and rapid site installation.

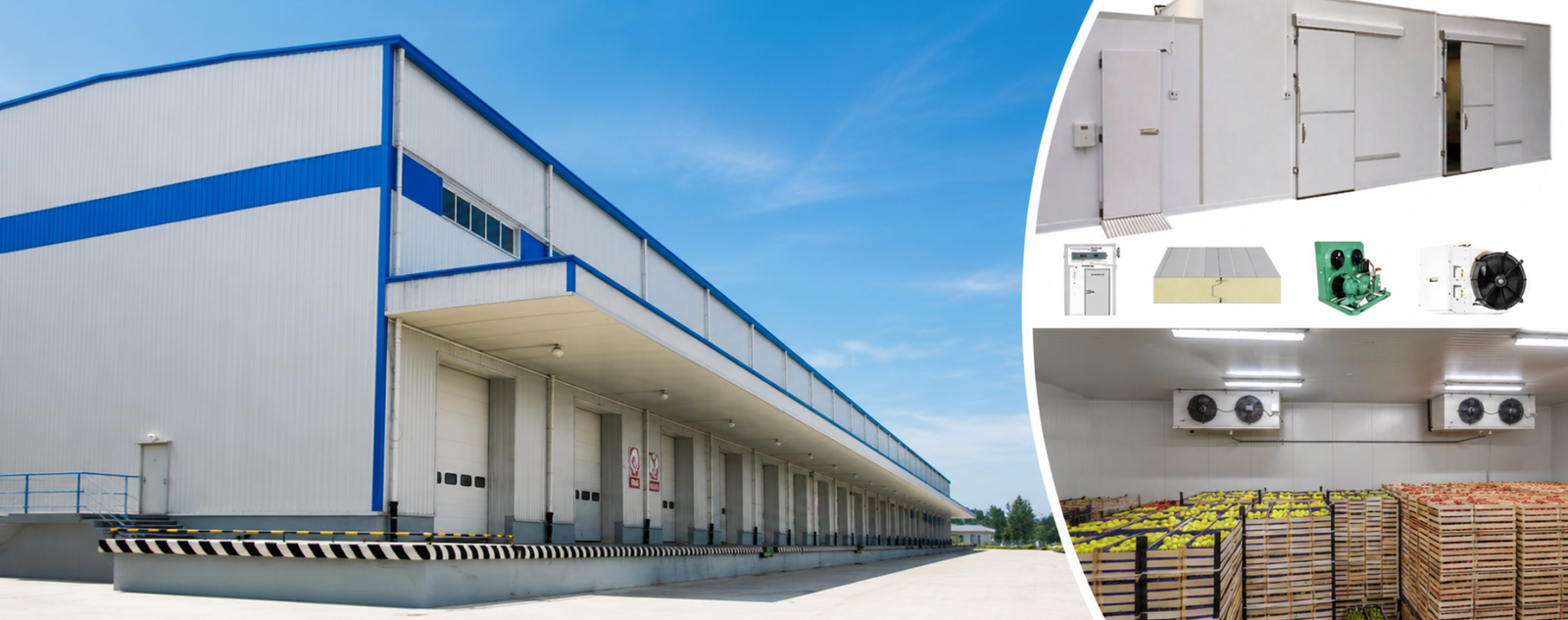

7. Cold Storage & Refrigerated Warehouses (EPC)
Turnkey EPC cold storage — bulk cold stores, refrigerated warehouses, multi-commodity cold rooms, ripening chambers, pharma cold storage and modular cold rooms. PUF-panel envelope, ammonia or Freon refrigeration, IoT temperature and humidity control. Capacities from a few hundred to 5,000+ MT.
Mini Cold Storage & Mini Rural Agri Warehouses
Purpose-built for farms, FPOs, dairies, horticulture clusters and rural markets — compact, modular, plug-and-play cold rooms and agri storage that bring the cold chain to the farm gate and cut post-harvest losses.
Mini & Micro Cold Storage
Modular PUF-panel cold rooms, factory-built and site-assembled in days. Available as fixed installations or mounted on wheels for mobile field storage. Ideal for potatoes, fruits, vegetables, flowers, dairy and vaccines.
| Feature | Specification |
|---|---|
| Envelope | Insulated PUF sandwich panels, vapour-barrier sealed |
| Temperature range | Chilled 2–8°C (potatoes 4–6°C) to frozen sub-zero |
| Humidity control | ~85–90% RH to prevent sprouting and rotting |
| Refrigeration | Inverter compressors, load-sharing with backup |
| Power options | Grid, generator or solar-ready off-grid |
| Configuration | Fixed on-site or mobile on-wheels; scalable, modular |
Mini Rural Agri Warehouses
Small prefab / PEB warehouses for grain, produce, seed, fertiliser and farm-input storage — steel-framed, insulated and ventilated to protect stock in rural conditions. Quick to erect, expandable in bays, and suitable for FPOs, mandis, cooperatives and agri-input dealers.
- Steel portal / PEB frame with insulated roof and wall panels
- Ventilation and moisture control to protect grain and produce
- Wide clear spans for stacking, racking and easy handling
- Modular bays — extend as storage needs grow
- Combine with a mini cold room for mixed dry + cold storage on one site
Typical buyers: farmers & FPOs, dairy and horticulture units, cold-chain operators, agri-input dealers, rural entrepreneurs and government / PACS schemes.

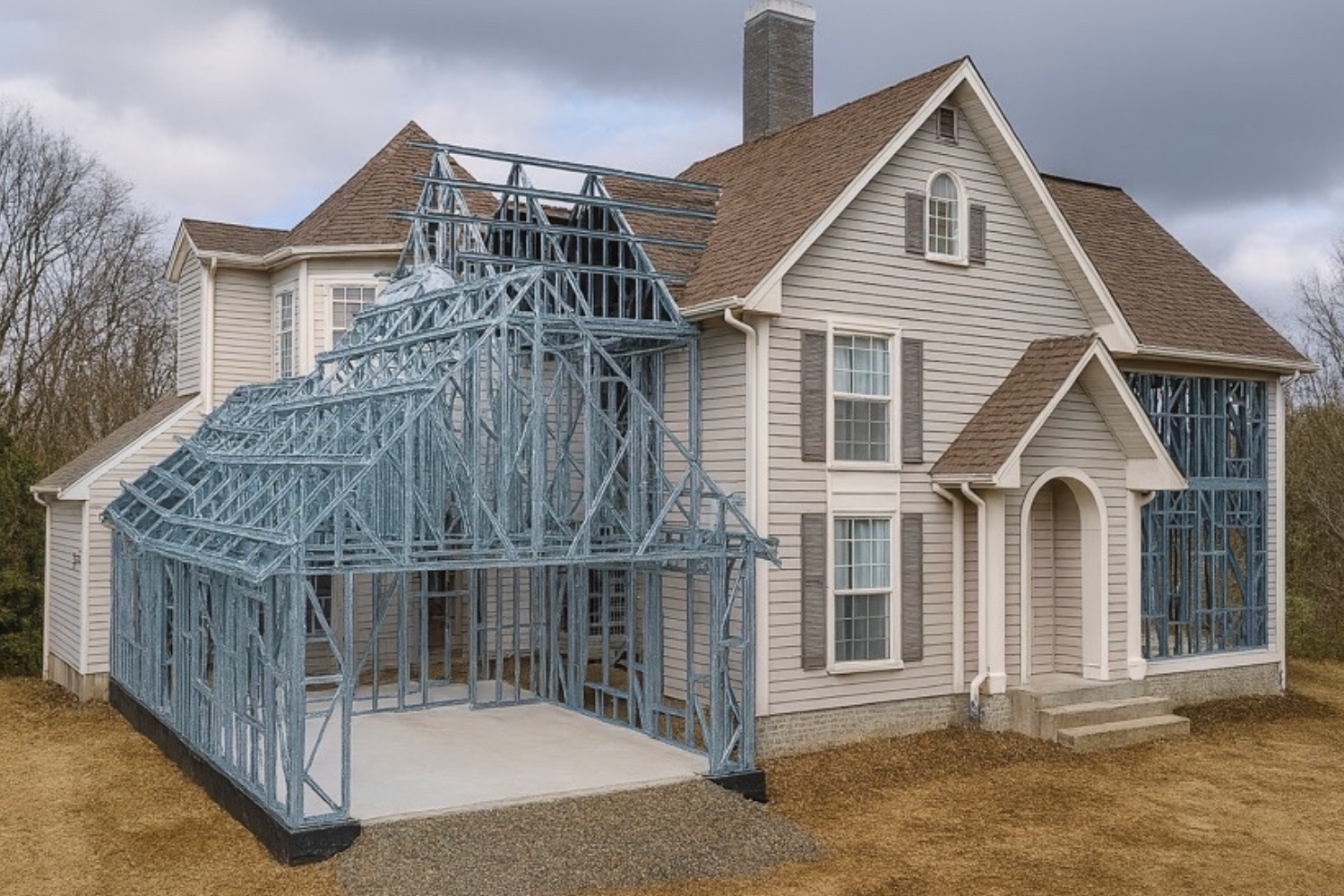

The Wedge Wall System
A high-strength steel frame clad in Wedge cement and MgO boards with an R10 insulated core — the complete external wall in a 120 mm build-up, outside to inside.
| Layer | Material | Thickness |
|---|---|---|
| Cladding | UV-coated high-strength cement board | 8 mm |
| External board | Waterproof perlite-magnesia (MgO) board | 12 mm |
| Frame + insulation | Galvanised steel C-sections + R10 HD stone wool | 90 mm |
| Internal board | MgO board, finish-ready | 10 mm |
| Total | Complete insulated wall | 120 mm |
R10 insulation · 48–55 dB acoustic rating · non-combustible boards · waterproof, mould-resistant envelope · 30+ year guaranteed life.
Why Wedge Industries
- Engineered to last: LGSF & steel-hybrid frame, MgO & cement-board envelope, 30+ year life.
- Fast delivery: a finished building in 4–6 weeks from design freeze.
- Fire & seismic safe: non-combustible cladding and a steel frame that flexes under seismic load.
- Energy efficient: pre-insulated envelope with near-zero heating/cooling cost.
- Global capability: manufacturing bases in India, UK, Spain and China; exports to 45+ countries.
- Turnkey EPC: single-contractor delivery from design to commissioning.
From Design to Delivery
Share your requirement — building type, size, configuration, site location and budget. We engineer the design, manufacture in the factory, and deliver in 4–6 weeks (subject to design freeze). Structure, panels and finishes scale to your budget across Economy, Standard and Luxury specifications.
Frequently Asked Questions
How long does a Wedge prefab building take to deliver?
Most prefab buildings are delivered in 4–6 weeks from design freeze. The shell is typically raised in under one month — far faster than the 8–12 months a masonry equivalent takes.
Are prefab buildings durable and safe?
Yes. Wedge buildings use a galvanised light-gauge steel frame clad in MgO and cement board, engineered for a 30+ year service life. They are non-combustible, resist rot, termites and corrosion, and flex safely under seismic load.
What is a mini cold storage and who is it for?
A compact, modular PUF-panel cold room — fixed or on wheels — built for farms, FPOs, dairies and horticulture clusters. It holds chilled 2–8°C to sub-zero at ~85–90% RH, cutting post-harvest losses.
What is a mini rural agri warehouse?
A small prefab / PEB warehouse for storing grain, produce, seed, fertiliser and farm inputs. Steel-framed, insulated and ventilated, it erects quickly and expands in modular bays.
Can buildings be relocated?
Yes. Our Building-on-Wheels range — tiny homes, cottages, shops, mini cold storage and mini warehouses — is built on a trailer chassis so it can be transported and re-sited.
Do you deliver outside India?
Yes. Wedge Industries operates manufacturing bases in India, UK, Spain and China and exports to 45+ countries, including the Gulf, UK, USA and Australia.
