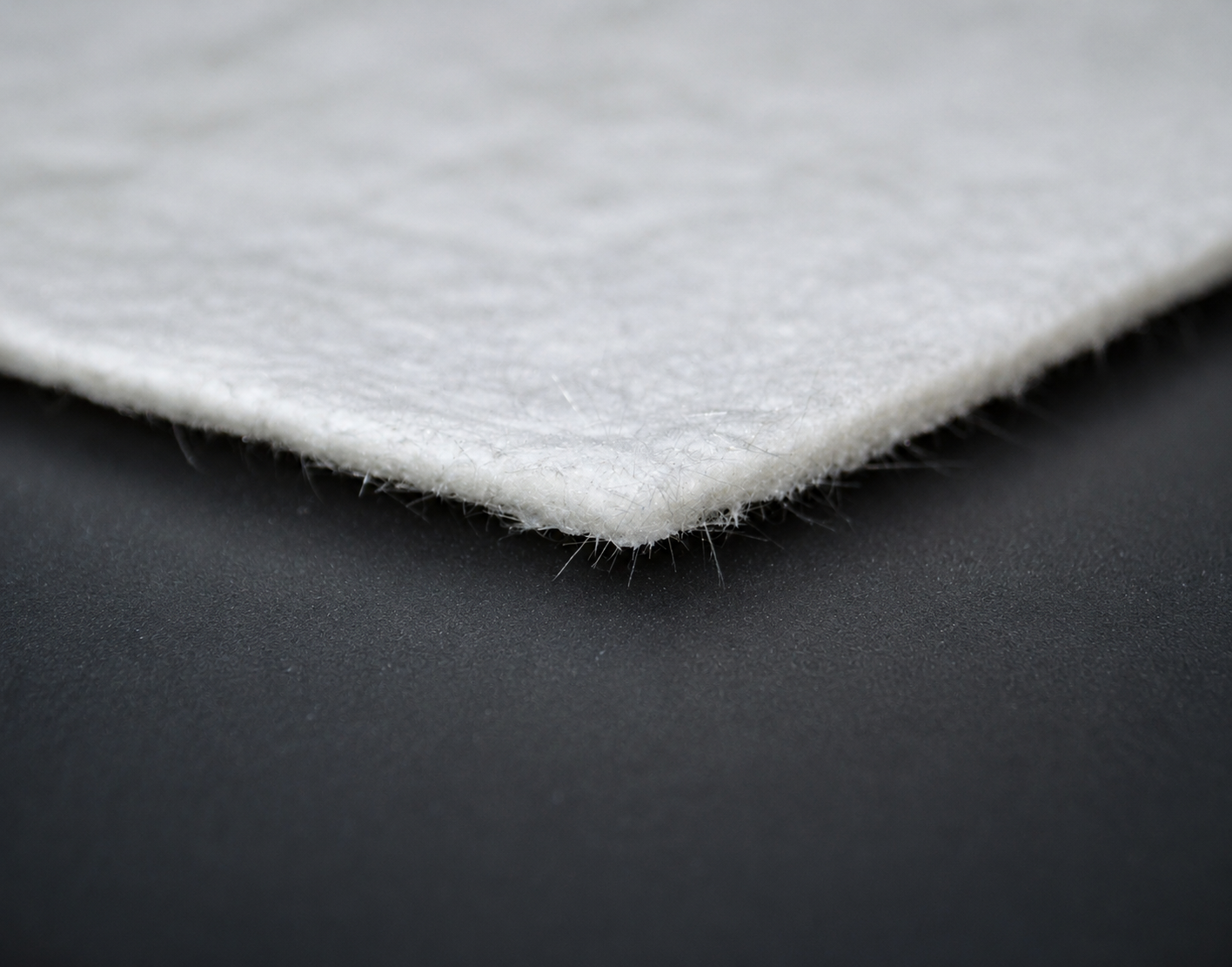

WedGel WAG650 Commercial Grade Aerogel Blanket up to 650°C | WI-AGL-WAG650
WedGel WAG650 Flagship High-Temperature Aerogel Blanket up to 650°C — Nanoporous silica aerogel insulation engineered by Wedge Insulation for demanding thermal, fire protection, and energy efficiency requirements. Grade designation: WedGel WAG650.
WedGel WAG650 Technical Specifications of Commercial Grade Aerogel Blanket
- Thermal Conductivity: 0.018 W/m·K @ 25°C, 0.068 W/m·K @ 600°C
- Service Temperature: -50°C to +650°C
- Density: 200 ± 40 kg/m³
- Hydrophobicity: >99% water repellency (GB/T 10299)
- Product Form: Flexible blanket — flagship grade
- Thickness Range: 1 mm – 50 mm, custom available
- Compliance: ASTM C1728, ASTM C177, ASTM C795, ASTM C1617, IEC 60695-11-5, RoHS, REACH
Key Benefits of Commercial Grade Aerogel Blanket
✔ Among the lowest thermal conductivities available — up to 3× better than conventional mineral wool
✔ Ultra-thin profile reduces insulation thickness by 50–70%
✔ Hydrophobic — maintains performance in wet or humid environments
✔ Lightweight — minimises structural and system load
✔ Non-combustible — Class A fire rating
✔ Manufactured to ASTM C1728 with full Material Test Certificate (MTC) and traceability
✔ Global supply capability with India stock for short lead times
Industries Served
- Oil Refineries
- Petrochemical Plants
- Steel & Foundry
- Steam Networks
- Power Generation
Best Use
Refinery hot piping, steel furnace, HP steam, petrochemical process
Product Forms:
Flexible blanket — flagship grade
Service Temperature:
-50°C to +650°C
Thickness Options:
1 mm – 50 mm, custom available
Supply:
Global supply — India (Faridabad & Hardoi stock), UK, Europe, Middle East, USA, South-East Asia. Standard lead time: ex-stock 24–48 hrs (Faridabad); project orders 10–15 days FOB.
Positioning:
Flagship Wedge high-temperature aerogel blanket — the workhorse for refinery, petrochem and steel applications.
