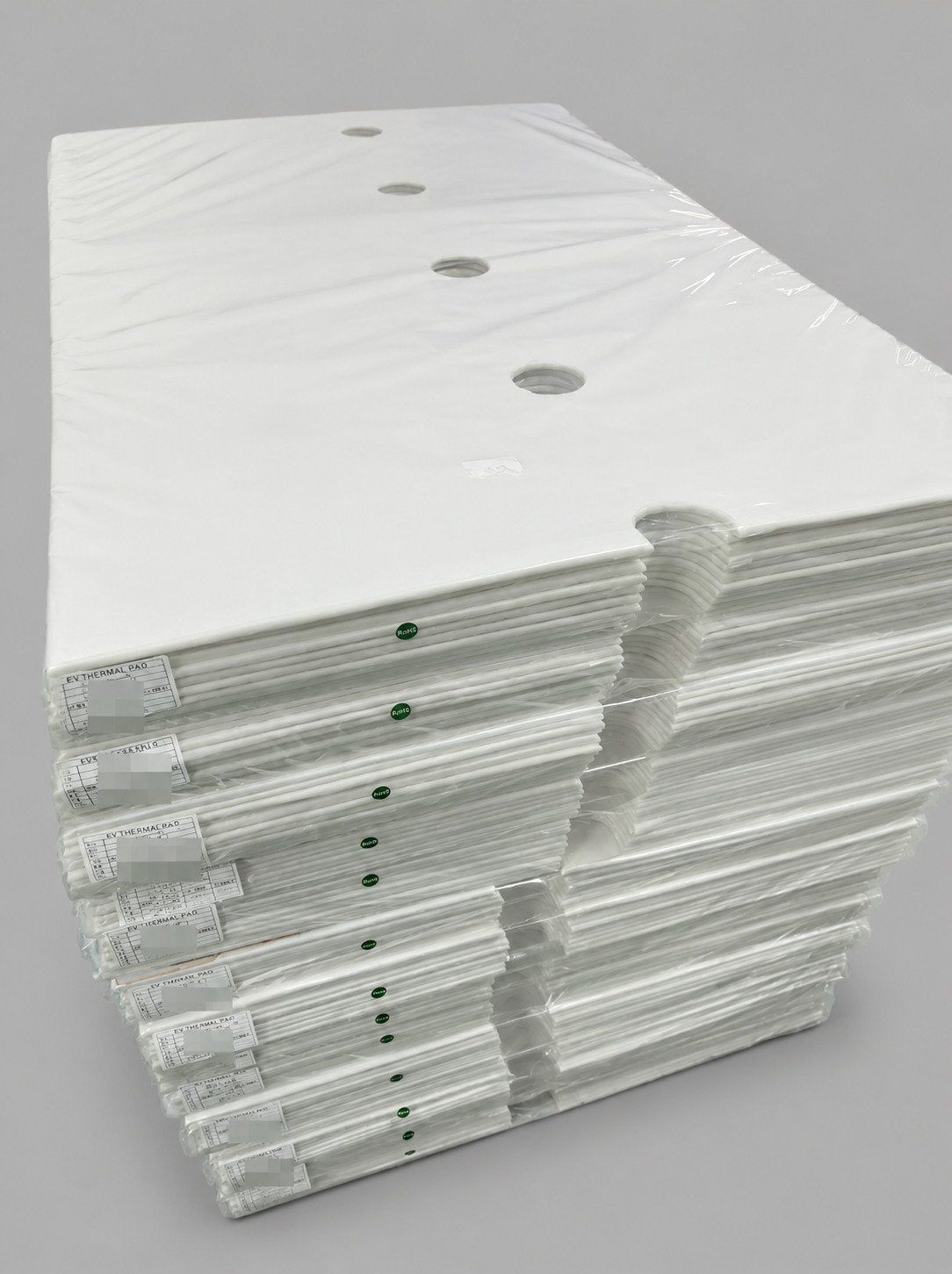

WedGel RP1000 Rigid Aerogel Panel for Steel Furnace Hot Face & Kiln Backing (up to 1000°C) | WI-AGL-WAGRP1000
WedGel RP1000 Rigid Aerogel Panel for Steel Furnace Hot Face & Kiln Backing (up to 1000°C) — Nanoporous silica aerogel insulation engineered by Wedge Insulation for demanding thermal, fire protection, and energy efficiency requirements. Grade designation: WedGel RP1000.
WedGel RP1000 Technical Specifications
- Thermal Conductivity: 0.022 W/m·K @ 25°C
- Service Temperature: Up to +1000°C
- Density: 280 – 320 kg/m³
- Hydrophobicity: >99% water repellency (GB/T 10299)
- Product Form: Rigid pre-formed panel
- Thickness Range: 15 mm – 50 mm, custom sizes
- Compliance: ASTM C1728, ASTM C177, ASTM C795, ASTM C1617, IEC 60695-11-5, RoHS, REACH
Key Benefits
✔ Among the lowest thermal conductivities available — up to 3× better than conventional mineral wool
✔ Ultra-thin profile reduces insulation thickness by 50–70%
✔ Hydrophobic — maintains performance in wet or humid environments
✔ Lightweight — minimises structural and system load
✔ Non-combustible — Class A fire rating
✔ Manufactured to ASTM C1728 with full Material Test Certificate (MTC) and traceability
✔ Global supply capability with India stock for short lead times
Industries Served
- Steel Foundries
- Ceramic Kilns
- Glass Furnaces
- Cement Pre-heaters
- Heat Treatment Furnaces
Best Use
Steel furnace hot face, ceramic kiln backing, refractory back-up insulation
Product Forms:
Rigid pre-formed panel
Service Temperature:
Up to +1000°C
Thickness Options:
15 mm – 50 mm, custom sizes
Supply:
Global supply — India (Faridabad & Hardoi stock), UK, Europe, Middle East, USA, South-East Asia. Standard lead time: ex-stock 24–48 hrs (Faridabad); project orders 10–15 days FOB.
Positioning:
Rigid high-density aerogel panel for refractory hot-face and back-up service.
