Aerogel Mat — WedGel WAG650 Silica Aerogel Insulation Mat, −50 °C to +650 °C

Overview

An aerogel mat is silica aerogel locked into a flexible fibre web and supplied as a flat sheet or die-cut shape rather than a long roll. It gives the same nanoporous insulation as an aerogel blanket — pores smaller than the mean free path of air, so heat has almost no path to conduct through — in a format that drops straight onto an enclosure wall, a panel, a valve box or a battery tray.

The WedGel WAG650 grade is the flagship high-temperature mat from Wedge Industries Limited. It measures 0.018 W/m·K at 25 °C and 0.068 W/m·K at 600 °C (ASTM C177), serves continuously from −50 °C to +650 °C, weighs about 200 kg/m³ and repels over 99 % of liquid water while staying vapour-permeable. For the same heat loss it is typically 2 to 2.5 times thinner than mineral wool, which is why it is specified where space, weight or corrosion under insulation decide the design.

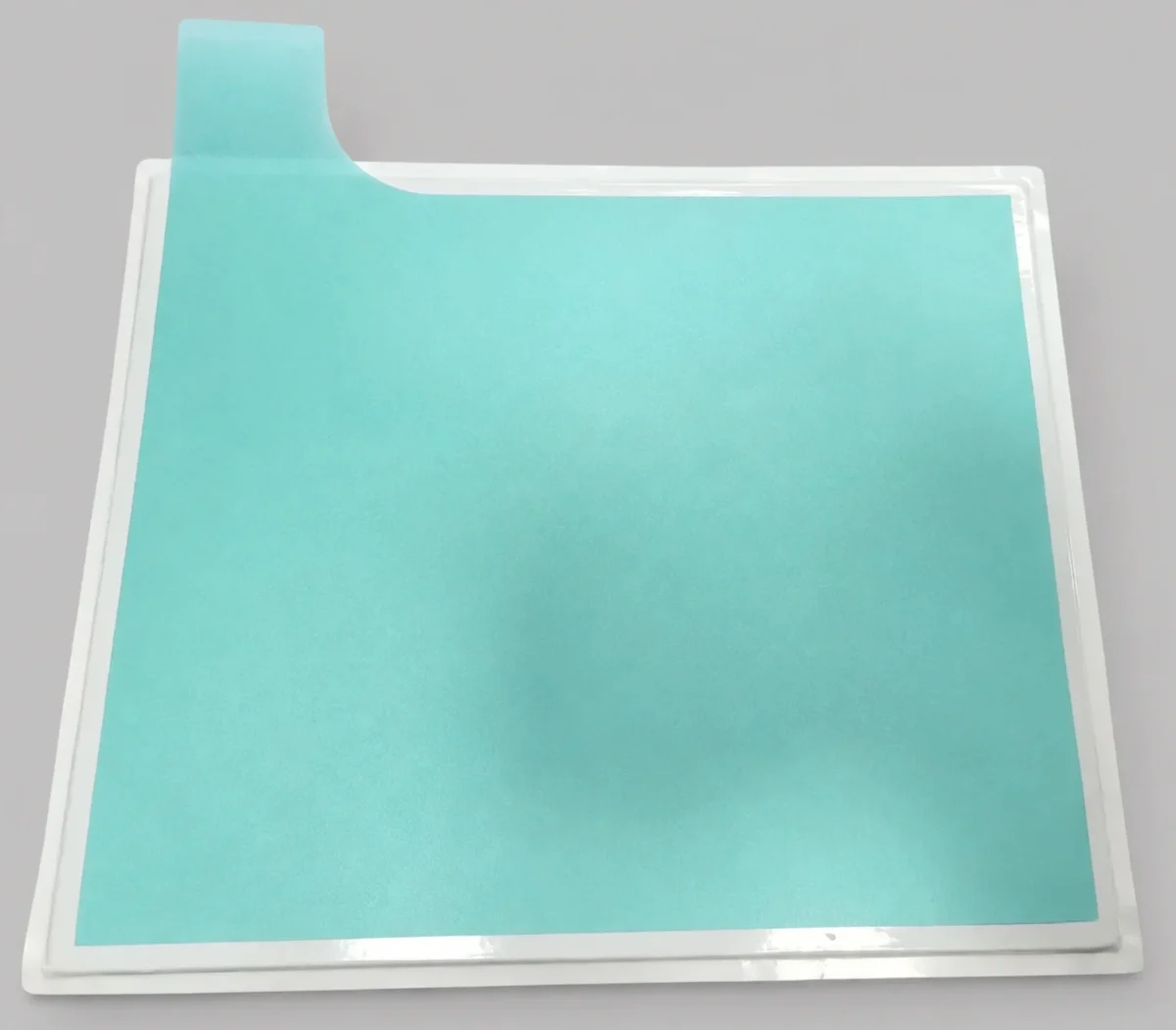

The mat pictured is supplied on a peel-off release liner for adhesive-backed fitting. The same WAG650 material is also available plain, aluminium-foil-laminated, PET-backed or faced with silica cloth, and is die-cut to drawing for OEM kits.

Aerogel mat specifications — WedGel WAG650

Values below are from the WedGel WAG650 technical data sheet. A TDS is issued with every quotation; request a sample where a value must be confirmed for your design.

Property	WedGel WAG650 aerogel mat	Test basis
Material	Silica aerogel on fibre reinforcement, flexible mat	—
Thermal conductivity at 25 °C	0.018 W/m·K	ASTM C177
Thermal conductivity at 600 °C	0.068 W/m·K	ASTM C177
Service temperature	−50 °C to +650 °C continuous	—
Density	200 ± 40 kg/m³	ASTM C1728
Thickness	3, 5, 6, 10, 15, 20 mm standard; 1–50 mm on request	—
Hydrophobicity	>99 % water repellency, vapour-permeable	GB/T 10299
Fire performance	Class A (non-combustible)	ASTM E84, EN 13501-1, ISO 1182
Stainless-steel compatibility	Passes	ASTM C795, ASTM C1617
Facing options	Plain · release-liner adhesive · aluminium foil · PET · silica cloth	—
Supply form	Cut sheets, die-cut shapes, custom widths, rolls on request	—
Compliance	RoHS, REACH	—

Aerogel mat price

WedGel aerogel mats are priced per m² by thickness and cut size. For project quantities of 100 m² and above, ex-works Faridabad and excluding 18 % GST, the WedGel range runs from ₹1,350/m² ($14) for thin ambient grades to ₹4,500/m² ($47) for thick and speciality grades; a 10 mm WAG650 mat sits at roughly ₹2,950–₹3,850/m² ($31–$40). Figures are indicative at ₹96 per US$ and updated 01-10-2026; sample orders under 20 m² cost 20–30 % more and orders above 1,000 m² are priced on request.

Die-cut shapes, adhesive-backed mats and laminated faces are quoted on drawing. Send the thickness, dimensions, quantity and operating temperature for a firm price in ₹ INR and $ USD. See the full aerogel insulation price guide for every grade.

Applications

• Industrial equipment and enclosures — turbine and compressor housings, oven and dryer panels, exhaust shields, valve and flange boxes, where a thin mat replaces 25–50 mm of wool. See high-temperature insulation.
• EV and energy storage — cell-to-cell and module-to-lid barriers, BESS container linings and busbar covers; pair with the EV battery thermal and fire protection range for UL94 V0 grades.
• Process pipework and tanks — wrap-on sheets for steam, hot oil and thermic fluid lines up to 650 °C, with hydrophobic performance that helps control corrosion under insulation.
• Buildings and data centres — behind radiators, inside wall and roof build-ups where depth is limited, chilled-water plant rooms; see data centre insulation.
• Appliances and transport — refrigerator and freezer pads, rail and marine panels, aerospace and defence enclosures made to drawing.

Installation

1. Cut the mat with a sharp knife or shears; wear gloves, long sleeves and a dust mask, as dry aerogel sheds fine dust during cutting.
2. Clean the substrate of oil and loose scale. For adhesive-backed mats, peel the release liner and press on firmly from the centre outward at 10–40 °C.
3. Butt joints tightly; on hot equipment stagger the joints between layers. Use two layers of 10 mm rather than one of 20 mm around tight radii.
4. Secure plain mats with stainless-steel bands, wire or high-temperature tape, then fit a metal, foil or fabric outer cladding to protect the surface.
5. Do not compress the mat below 80 % of its thickness, as compression raises conductivity.

A written application guide and a technical data sheet are available on request for every WedGel grade.

Why buy aerogel mats from Wedge Industries Limited

• India’s largest manufacturer of aerogel insulation systems, with plants in Faridabad and Hardoi and over ₹1 crore of aerogel material in ready stock for immediate dispatch.
• Twenty-five WedGel grades — cryogenic, high-temperature, building and EV — so the mat is matched to the duty, not forced to fit.
• Every grade tested to ASTM, ISO, EN and GB/T methods; TDS, MTC and sample supplied with the quotation.
• In-house die-cutting, slitting and lamination for OEM kits; custom sizes without a tooling minimum for most profiles.
• Export to 45+ countries across the Gulf, Europe, Africa and South East Asia; Incoterms EXW, FOB, CIF and DAP; export documentation through group company ZJELL Limited.
• Offices and warehousing in India (Gurugram and Faridabad) with group companies in the United Kingdom and Hong Kong.
